• Manual transfer case & hubs
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K Built Ford Tough trailer hitch receiver-inc: 2" hitch
• Trailer brake controller
• 6-3/4' pickup box-inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/vacuum boost
• 2-ton mechanical jack

• (5) LT245/75R17E all-season BSW tires
• 17" chrome steel wheels w/bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/glossy body-color top cover
• Chrome rear bumper
• Black lower air dam
• Front fender vents
• Box-rail & tailgate top-edge moldings
• Grille w/medium platinum insert & chrome surround
• Dual beam jewel effect headlamps
• Pickup box/cargo lights
• Underhood service light
• Manual telescoping trailer tow mirrors w/pwr heated glass, heated spotter mirror
• Solar tinted glass
• Rear privacy glass
• Flip-out rear quarter windows
• Interval windshield wipers
• Dual rear access doors
• Front license plate bracket
• Rear license plate bracket
• Black door handles
• Removable locking tailgate w/black handle & Tailgate Assist

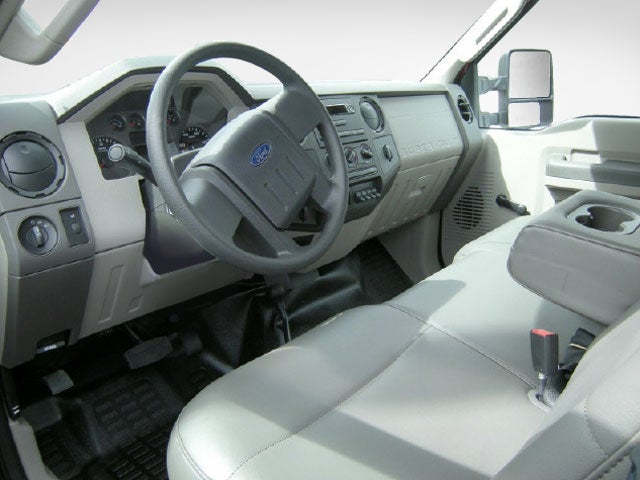

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack

• Cloth 40/20/40 split bench split
• Driver manual lumbar support
• Fold-up rear bench seat
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Tilt steering wheel
• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• Manual air conditioning w/chrome ringed black vents
• (4) air registers w/positive shut-off
• Map pockets w/integrated "closed containers only" cupholders
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Instrument panel mounted storage bin & trash bag hook
• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel, molded upper applique, upper & lower map pockets, grab handle & reflector
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Driver & passenger grab handles
• Dual color-keyed cloth sunvisors-inc: driver-side pocket, passenger-side mirror insert
• Front door operated dome lamp w/time delay off & IP switch
• Map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags w/passenger-side deactivation switch
• SOS post crash alert system -inc: doors unlock, horn & hazard flashers are activated when air bags are deployed
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

5.4L SOHC 24-VALVE EFI TRITON V8 ENGINE ($0)

• (STD)

• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• 4-Wheel ABS
• 4-Wheel Disc Brakes
• Third Passenger Door
• Fourth Passenger Door
• Four Wheel Drive
• 8 Cylinder Engine
• Gasoline Fuel
• Power Steering
• Intermittent Wipers
• Auxiliary Pwr Outlet
• Vehicle Anti-Theft System
• Passenger Vanity Mirror
• Front Reading Lamps
• Trailer Hitch Receiver
• Front Tow Hooks
• Tire Pressure Monitoring System
• Trip Computer
• 2nd Row Bench Seat

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): HD 157
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3651
• Curb Weight - Rear (lbs): 2612
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1575
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2575
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Visteon Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): 0.63
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.5
• Turning Diameter - Wall to Wall (ft): 49.4
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 231.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 78.8
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.9
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): 80.3
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

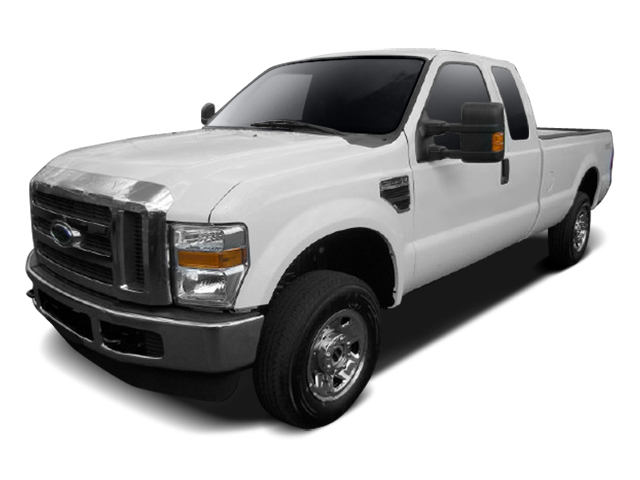

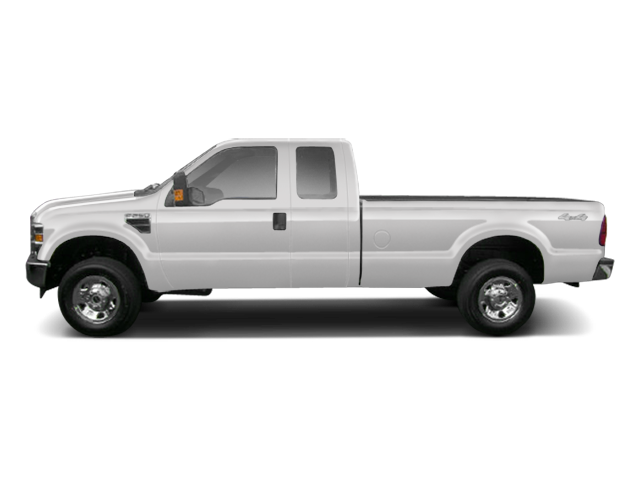

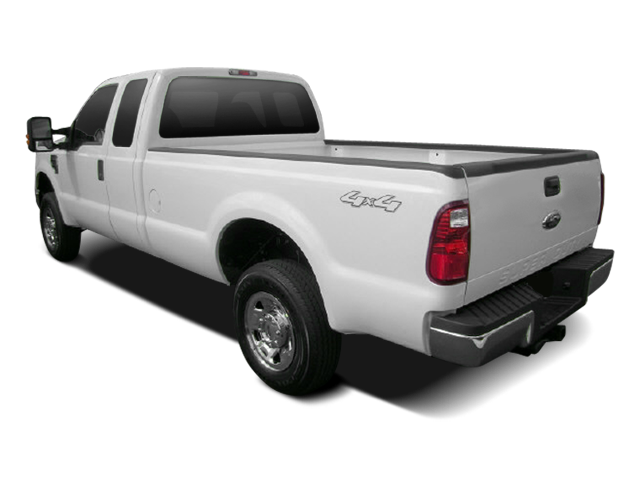

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Supercab 6-3/4'
• Body Code: 142" WB
